TutorialUse Unity Catalog

Use the Python client

Use the official Python SDK to write, read, and organize data.

In this tutorial you build the same small catalog as in Create your first catalog, this time from Python with unitycatalog-client, the official SDK for the Unity Catalog REST API. You connect, create a catalog, a schema, and a table, see how the client reports an object that doesn't exist, and clean up. Applications, notebooks, and scripts use the same calls to manage catalog objects.

  1. Start the environment

    Download the docs' environment and start Unity Catalog 0.7.0. Already running it? Skip this.

    curl -fsSL https://docs.unitycatalog.io/env/unitycatalog.tar.gz | tar -xz
cd uc-docs-env/unitycatalog && docker compose up -d --wait
export UNITY_CATALOG_URL=http://localhost:8080/api/2.1/unity-catalog

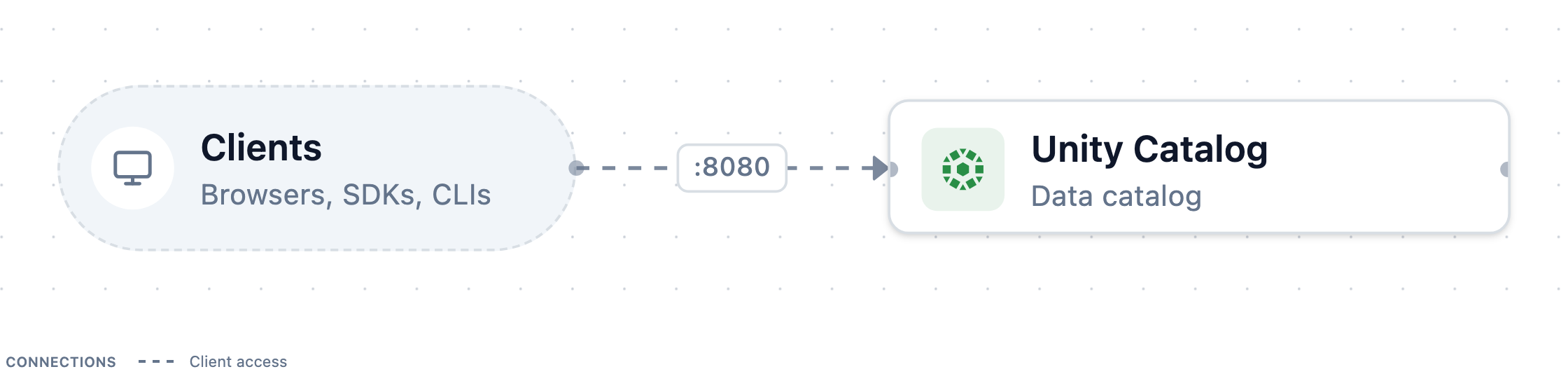

    The services Unity Catalog 0.7.0 runs and how clients reach them

    Stop it later with docker compose down from uc-docs-env/unitycatalog.

  2. Open a Python session

    Open a Python session with the client installed:

    uv run --with unitycatalog-client==0.7.0 python -m asyncio

    Enter each of the following snippets in it, in order.

  3. Connect to the server

    Point a Configuration at the server and open an ApiClient. Each resource type has its own API class built on that client:

    catalog_flow.pyFull script
    from unitycatalog.client import (
    ApiClient,
    CatalogsApi,
    Configuration,
    SchemasApi,
    TablesApi,
)

config = Configuration(host="http://localhost:8080/api/2.1/unity-catalog")
api = ApiClient(config)
catalogs = CatalogsApi(api)
schemas = SchemasApi(api)
tables = TablesApi(api)

    The host includes the API prefix, /api/2.1/unity-catalog. Authorization is off on the local server, so the client needs no token.

  4. Create a catalog

    Every create call takes one request object:

    catalog_flow.pyFull script
    from unitycatalog.client import CreateCatalog

catalog = await catalogs.create_catalog(
    CreateCatalog(name="quickstart", comment="Created from Python")
)
print(catalog.name, catalog.id)

    The server returns the new catalog, including the id it generated.

  5. List catalogs

    A list call returns a response object. Its catalogs field holds the items:

    catalog_flow.pyFull script
    listed = await catalogs.list_catalogs()
print([c.name for c in listed.catalogs])

    quickstart is listed next to the sample catalog unity.

  6. Create a schema

    A schema lives inside one catalog:

    catalog_flow.pyFull script
    from unitycatalog.client import CreateSchema

schema = await schemas.create_schema(
    CreateSchema(name="sales", catalog_name="quickstart")
)
print(schema.full_name)  # quickstart.sales

  7. Create a table

    Register an external Delta table with one column in the new schema:

    catalog_flow.pyFull script
    from unitycatalog.client import CreateTable
from unitycatalog.client.models import (
    ColumnInfo,
    ColumnTypeName,
    DataSourceFormat,
    TableType,
)

table = await tables.create_table(
    CreateTable(
        name="orders",
        catalog_name="quickstart",
        schema_name="sales",
        table_type=TableType.EXTERNAL,
        data_source_format=DataSourceFormat.DELTA,
        storage_location="file:///tmp/uc-docs/quickstart/orders",
        columns=[
            ColumnInfo(
                name="order_id",
                type_name=ColumnTypeName.LONG,
                type_text="bigint",
                type_json='{"name":"order_id","type":"long","nullable":false,"metadata":{}}',
                position=0,
                nullable=False,
            )
        ],
    )
)
print(table.catalog_name, table.schema_name, table.name, table.table_type)

    Each column carries its type three ways: a type_name enum, a SQL type_text, and type_json, the column in Delta schema form. Registering a table stores only metadata, so the location doesn't need to exist yet. Register an existing external table shows how to read these values from a real Delta table.

  8. Handle a missing object

    Asking for an object that doesn't exist raises a typed exception that carries the HTTP status:

    catalog_flow.pyFull script
    from unitycatalog.client.exceptions import NotFoundException

try:
    await tables.get_table(full_name="quickstart.sales.returns")
except NotFoundException as exc:
    print("not found:", exc.status)  # not found: 404

    Other error responses raise sibling exceptions such as BadRequestException and UnauthorizedException, all subclasses of ApiException.

  9. Clean up

    Delete from the inside out, the table before its schema and the schema before its catalog:

    catalog_flow.pyFull script
    await tables.delete_table(full_name="quickstart.sales.orders")
await schemas.delete_schema(full_name="quickstart.sales")
await catalogs.delete_catalog(name="quickstart")
await api.close()

    The server refuses to delete a catalog or schema that still holds objects, unless you pass force=True. Leave the session with Ctrl+D.

What you did

You managed catalog objects from Python with the same requests the uc CLI sends. Every client, from this SDK to Spark, talks to the same REST API and sees the same names.
