Credential vending

How Unity Catalog issues short-lived storage credentials scoped to one table, volume, or path, and why that makes the catalog the gatekeeper for data access.

Engines read and write a lakehouse's data directly in object storage, so something has to give them access to that storage. With credential vending, the Unity Catalog server gives it. The server holds the one identity that can reach the storage. A client proves who it is to the catalog and asks for access to a single table, volume, model version, or path. If the catalog's grants allow it, the server returns a credential that works only for that location and that kind of access, and that expires within an hour. This page explains how that exchange works and where its guarantees end.

Why vend credentials instead of sharing keys

The alternative is to give every engine and user a storage key, or to keep a bucket policy for each of them. Each key is a standing secret that can leak. It usually reaches far more data than its holder needs. Revoking access means rotating the key everywhere it was copied, and the catalog's grants and the storage's permissions drift apart.

Vending moves the long-lived secret into one place, the catalog server, and gives clients only short-lived, narrow credentials. That has three effects:

• Clients prove identity and never hold long-lived keys. A client authenticates to the catalog with its own token. The storage identity never leaves the server.
• Each credential has a small blast radius. It covers one location and one operation, so a leaked credential exposes one table's files for at most an hour.
• Grants take effect quickly. Every credential request passes the catalog's authorization check. Revoke a grant and the next request fails. The longest delay is the remaining lifetime of a credential already handed out. No key needs rotating.

The catalog makes the access decision, and the storage enforces it on every request. Neither has to trust the client.

The flow

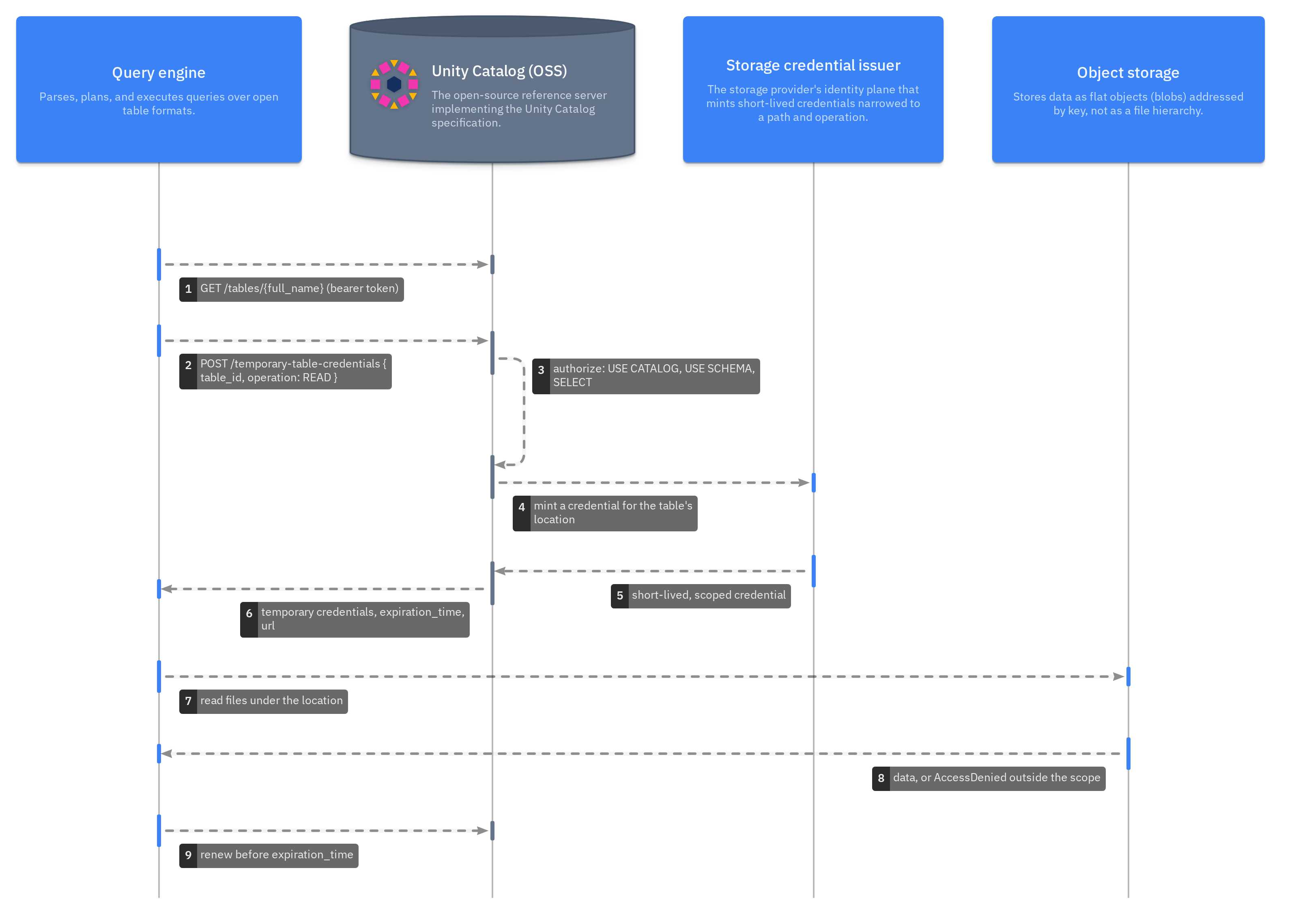

A client that reads a table makes two calls to the catalog before it touches storage. Expand the diagram and step through it:

1. Resolve. The client looks up the table by name with its own bearer token. The answer includes the table's ID and its storage location.
2. Request. The client asks POST /temporary-table-credentials for that table ID and an operation, READ or READ_WRITE.
3. Authorize. The server checks the caller's privileges. A read needs USE CATALOG, USE SCHEMA, and SELECT on the table. A write also needs MODIFY. Ownership covers both. If the check fails, no credential is minted.
4. Mint. The server finds the external location that contains the table's path and uses that location's storage credential. It asks the cloud's credential issuer for a credential narrowed to the table's location and the requested operation.
5. Return. The client receives the credential, the URL it covers, and an expiration_time in epoch milliseconds.
6. Read. The client reads the files straight from storage. Data never flows through the catalog. The storage rejects any request outside the credential's scope.
7. Renew. Before the credential expires, a long-running client asks again, and the server checks the grants again.

Volumes, model versions, and paths follow the same flow through their own endpoints.

What a credential covers

The server vends credentials through four endpoints. Each request names one object and one operation, and the privileges it needs depend on both. A request for anything inside a schema also needs USE CATALOG and USE SCHEMA on its parents, or ownership of them.

A path request can't get around a table's grants. If the path falls inside a table or volume, the server applies that object's privileges, as if the client had asked for the object itself.

Engines that speak the Delta API get credentials from its own endpoints, with the same checks. When a client creates a catalog-managed table, the staging response already includes a read-write credential for the new table's location. The Iceberg REST API returns a credential with each table it loads, plus the endpoint the client calls to renew it before it expires.

How the server mints a credential

The server never stores credentials for individual tables. It works them out when asked. The table's storage location falls under exactly one external location, which names a storage credential, which holds the identity the server uses with the cloud. External locations can't overlap, so the answer is always unique. See Core concepts for how locations and storage roots fit together.

Each cloud narrows the credential differently:

Storage credentials as catalog objects exist for AWS only. Azure and GCS vending uses server-wide adls.* and gcs.* settings in server.properties, and so does S3 when no external location covers a bucket. For the AWS setup (master role, storage roles, external IDs), see Configure AWS storage credentials and external locations.

A file:// location needs no keys. The server still checks the privileges, but its answer carries only the location. That is why local examples print empty credentials.

Expiry and renewal

A credential expires on its own. Its response carries expiration_time in epoch milliseconds. Clients should cache the credential until shortly before then and request a new one, rather than ask again for every file. The Spark connector does this automatically with its renewCredential.enabled option (see Configure Spark). If you build your own client, give its storage layer a credential callback that asks the catalog again before expiry. obstore's credential providers, for example, cache a credential until the expires_at you return.

The server can't recall a credential it has already issued. Revoking a grant stops new credentials, but an existing one stays valid until it expires.

Where the trust boundary sits

Vending protects data only if the catalog is the only way to reach it. These are the places where that assumption ends:

• Standing storage access bypasses the catalog. Anyone who can reach the bucket with their own IAM role or key never asks the catalog, so its grants don't apply to them. Keep direct access to governed locations limited to the server's identity and to operators.
• A vended credential is a bearer credential. Storage doesn't know who it was vended to. Whoever holds it can use it until it expires, so treat it like any other secret in logs and job configuration.
• Access is all-or-nothing per location. A credential opens every file under the table's location. The catalog can't use it to hide rows or columns, because the client reads the files itself. Row filters and column masks need an engine you trust to apply them.
• The decision is only as strong as authentication. With authorization disabled, the server vends to any caller. Enable authentication and authorization before you point the server at real storage.
• The server's identity is the crown jewel. The master role, or the keys in server.properties, can reach every governed location. Protect the server host and its configuration accordingly.
